How to connect Elasticsearch with SharePoint

This "how-to-connect" documentation will explain the initial configuration of an example connection from Elasticsearch to a SharePoint Online List in Office 365. We will be synchronizing data stored in Elasticsearch.



This guide presupposes that you have installed the Layer2 Cloud Connector and that you are familiar with its basic functionality. The Layer2 Cloud Connector User Documentation will provide you with all necessary information.





Contents

1. Configuring Elasticsearch

2. Configuring the Layer2 Cloud Connector

2.1 Creating a new connection

2.2 Configuring the Data Entity 1

2.3 Configuring the Data Entity 2

2.4 Running your connection

3. Hints and known issues

3.1 Connection direction

3.2 Data model



1. Configuring Elasticsearch

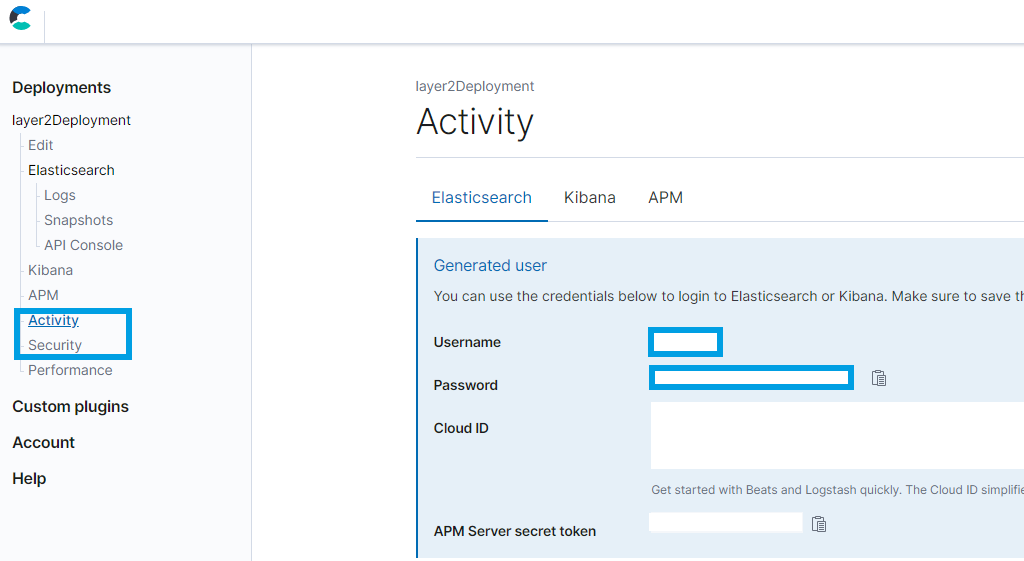

To connecto to Elasticsearch you are going to need the user from your Elasticsearch deployment, the user's password and the server address. The user and the password are only at the deployment time visible. If you do not have the password, you can reset it in your deployment under Security.



Elasticsearch username and password



Go to the deployment dashboard and copy the Endpoint URL from your Elasticsearch deployment. Paste it in a text editor. The content to the left from the : is your server address and the content to the right from the : the port number. We are going to use these values in the connection.



Elasticsearch Endpoint URL

2. Configuring the Layer2 Cloud Connector

2.1. Creating a new connection

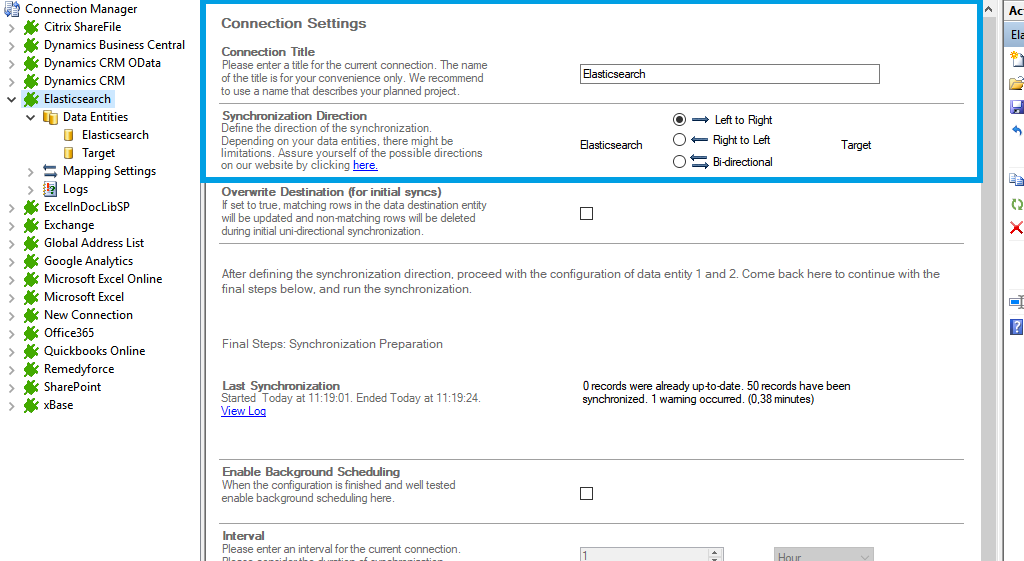

Create a new connection by using the Create New Connection option in the Actions pane (right-hand side). The new connection will appear at the bottom of the Connection Manager List (left-hand side). Click on your newly created connection to open the connection configuration settings.



Choose a meaningful name for your connection and replace the current "New Connection" Connection Title with it.



Connections to Elasticsearch can be uni-directional only. An initial connection should always be uni-directional to assure that both data entities are identical before switching to bi-directional. Therefore, choose Left to Right as Direction.



Step 1 Elasticsearch connection setup.png





2.2. Configuring the Data Entity 1

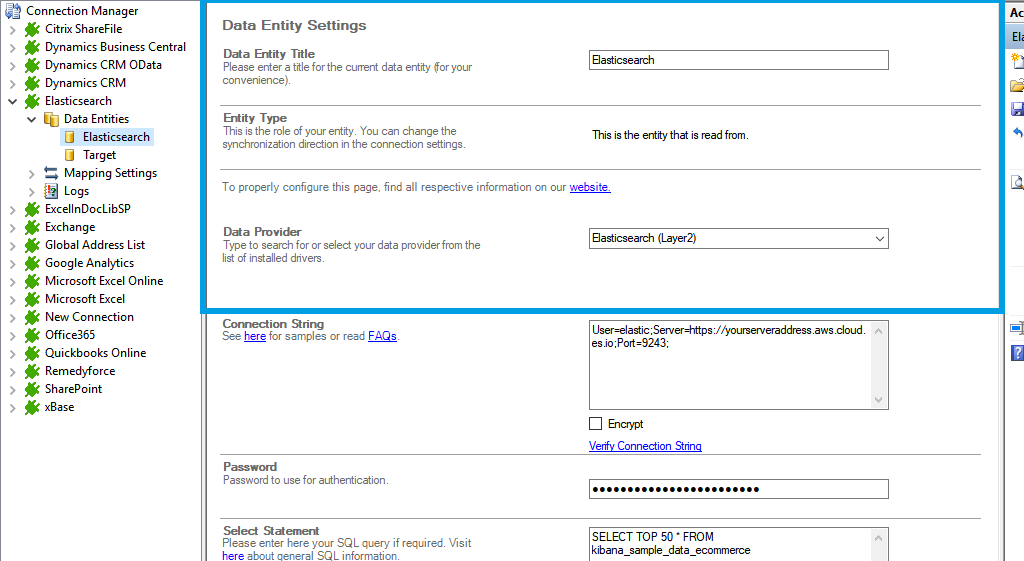

We will now set up our Data Entities. Go to the data entity “Data Entity 1” to open the configuration settings.



Choose a Data Entity Title. It is recommended to give your entities meaningful names to maintain an overview when you decide to set up multiple connections.



Select the Data Provider for Elasticsearch from the data provider list. You can search for Elasticsearch by typing into the selection box.



Step 2 Elasticsearch integration source setup.png

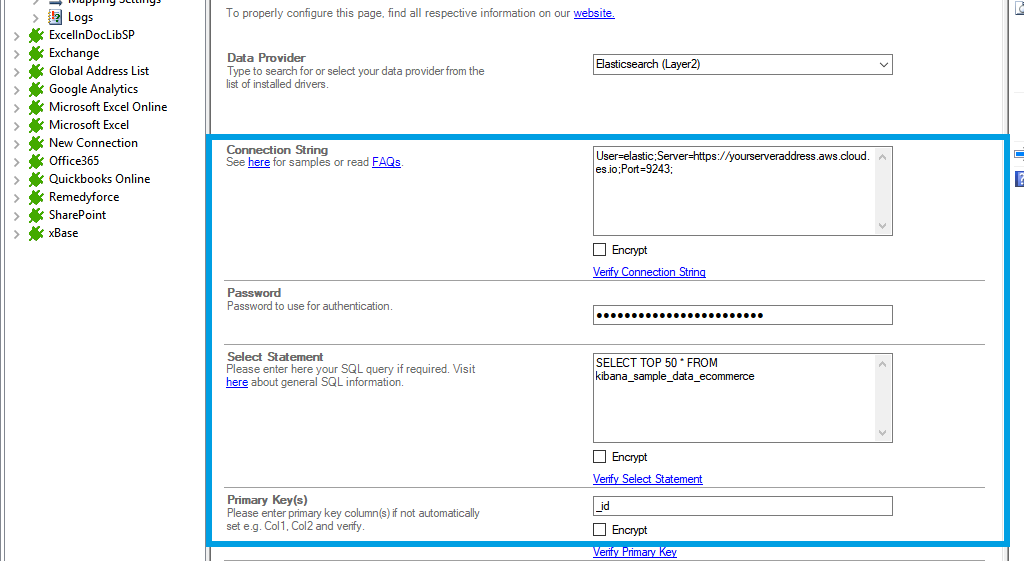

For the Connection String, we need the in step 1 mentioned information. You can copy the below connection string and adjust it to match your gathered information. Use the Verify Connection String option to evaluate if the provided connection string is valid.





User=elastic;Server=https://yourserveraddress.cloud.es.io;Port=9243;





  • "User=yourelasticsearchuser" this property defines the user that will be used.
  • "Server=https://yourelasticsearchserveraddress;" this property defines which server address will be connected to.
  • "Port=yourport;" this property must be set to the port number you get when you copied the Endpoint URL.



Enter the user account's password into the Password field. The field masks the value for better security.



The Select Statement text box is used to define specific data queries. We will be gathering all top 50 results from our table kibana_sample_data_ecommerce. You can copy the below select statement and adjust it to match your needs. Save your changes by using the right-hand pane option Save Changes.



SELECT TOP 50 * FROM kibana_sample_data_ecommerce



Step 2.5 Elasticsearch integration connection string setup.png

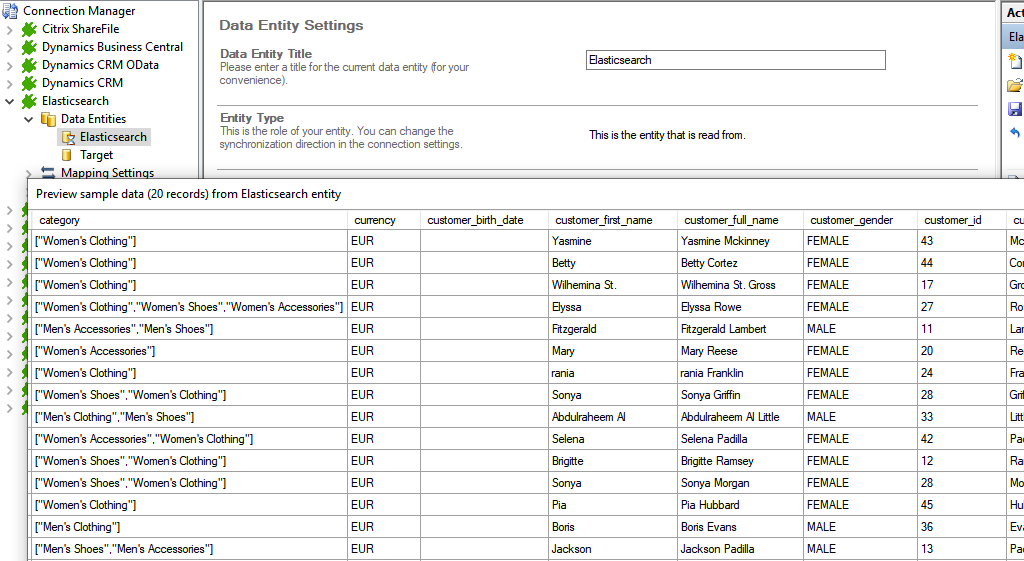

To check if all necessary columns are received, you can use the Preview Data option on the right-hand pane which will provide you with a pop-up window showing your sample data from your Elasticsearch entity.





Preview data of Elasticsearch integration.png



2.3. Configuring the Data Entity 2

We are going to send the data to a custom SharePoint Online list. It's required that you set up this list prior to the next steps. Your list should contain matching columns according to your source entity.



Use the left-hand pane to switch to the data entity "Data Entity 2". We will be using the Layer2 SharePoint Provider for this setup.



For more information about the SharePoint provider visit:

https://www.layer2solutions.com/support/cloud-connector-faqs/layer2-csom-sharepoint-ado-net-provider.



You can copy the below Connection String which contains the minimum of required properties to connect to your custom SharePoint Online list.



URL=https://your_custom_sharepoint_list_url/AllItems.aspx;Authentication=Office365;[email protected];



  • "URL=https://your_custom_sharepoint_url/AllItems.aspx;" this property defines the URL of your custom list that will be addressed.
  • "Authentication=Office365;" this property will determine the authentication method used. Office 365 is the default authentication method to access Microsoft Office 365 / SharePoint Online. This method will not work in case of federation, e.g. ADFS. For further authentication method you can consult the provider specifications linked above.
  • "[email protected];" this property should describe the user you wish to connect to SharePoint to.



Enter the password that belongs to the user account used in the connection string into the Password field. Save your changes by using the right-hand pane option Save Changes.

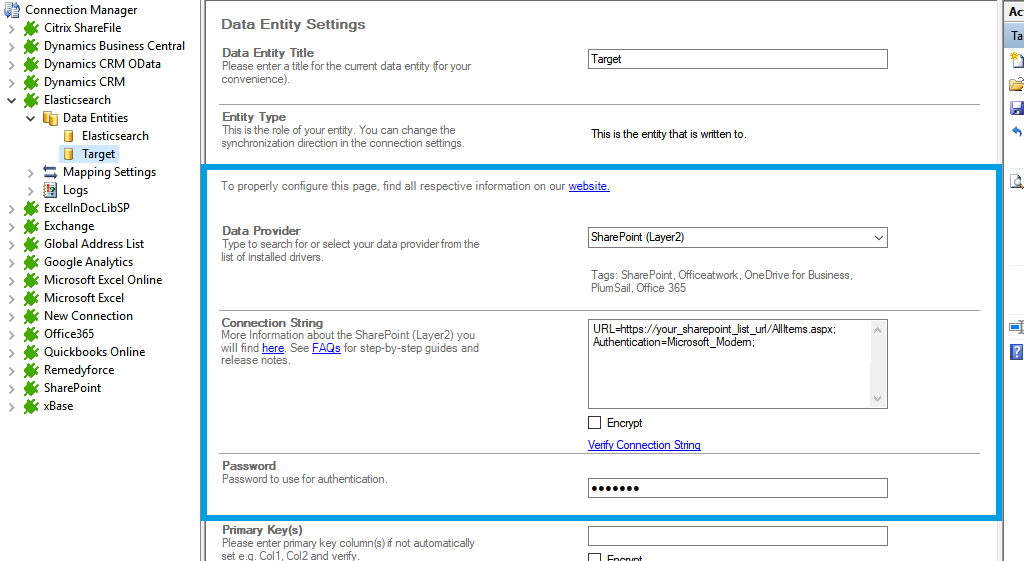

Step 3 Elasticsearch integration target setup.png

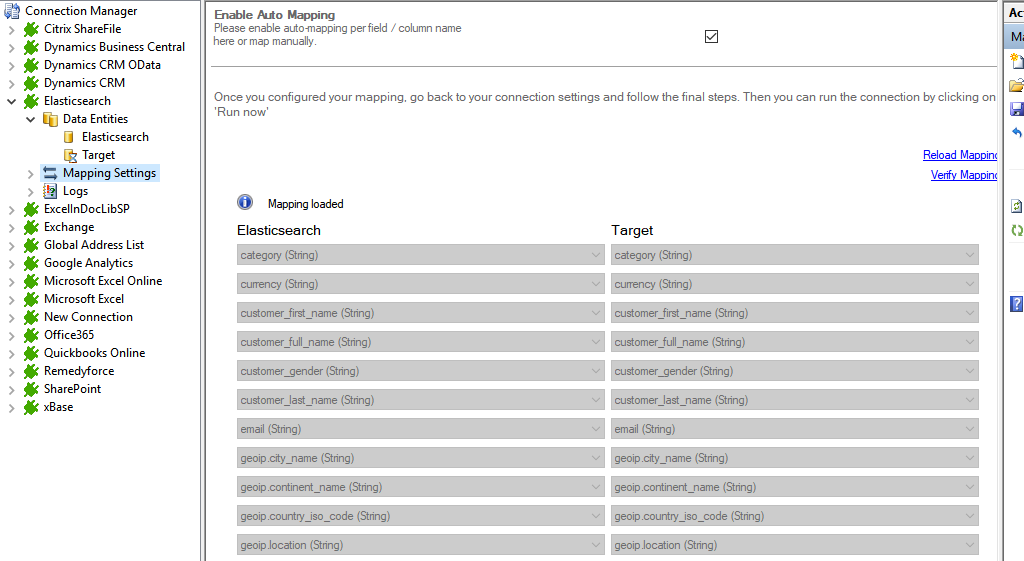

In the next step, we will configure our mapping settings. Click on the Mappings option on the left-hand pane. If your fields from SharePoint are named identical to the fields from your source system, the Enable Auto Mapping option will match those columns. Disabling this option allows you to match your columns as needed. We enabled auto-mapping in our setup. Save your changes by using the right-hand pane option Save Changes.



Step 4 Elasticsearch integration mapping.png



2.4. Running your connection

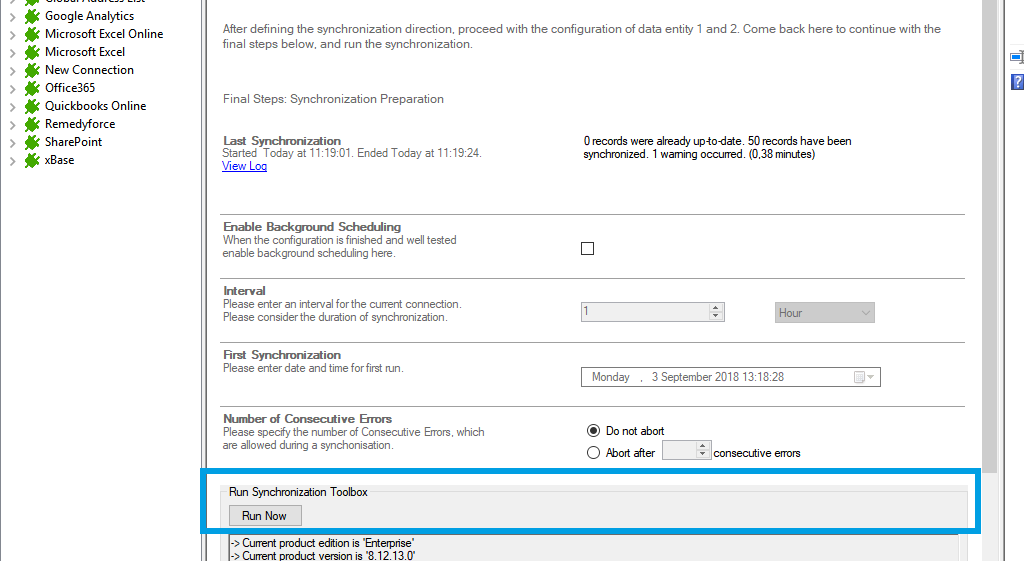

To run your connection switch back to the main connection configuration node and use the Run Now Button located on the bottom of the setup page. The Run Synchronization Toolbox will also display the synchronization process.



Step 5 Elasticsearch data integration start.png

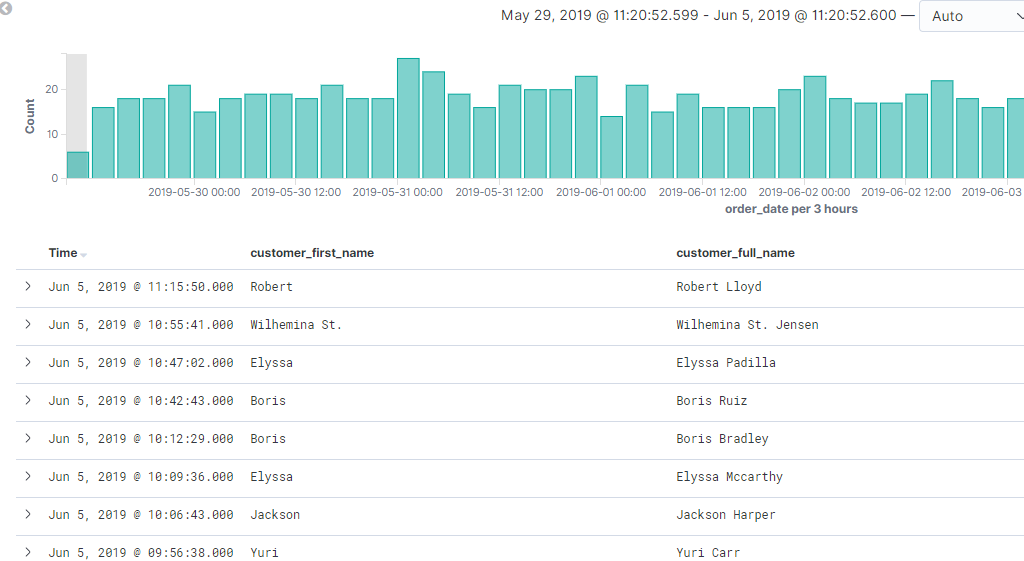

Below is a data preview of the information we have accessed in our source entity:



Elasticsearch integration ready.png

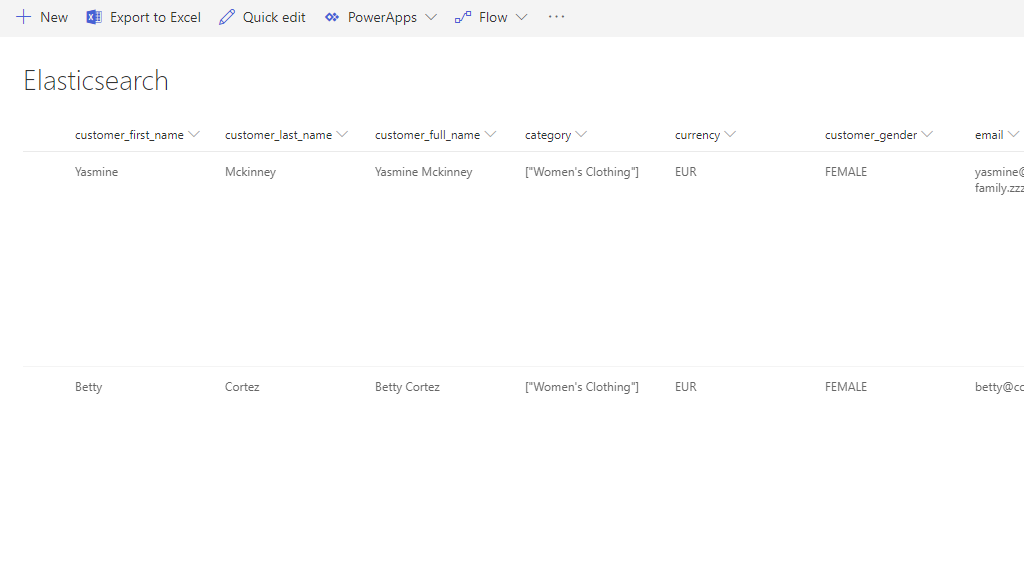

This will be the result in our SharePoint Online list after our initial successful synchronization:



Finished Elasticsearch integration.png

See section 3.1 for further information.

3. Hints and known issues



3.1. Connection direction

As far as tested, this connection supports uni-directional only.

3.2. Data model

To see all the tables and views you can access with the Elasticsearch provider, use these queries in the Select Statement:





SELECT * FROM sys_tables



SELECT * FROM sys_views





If there are more tables or views available, you can load them with the option "load more" in the popup window.
