How to connect Dynamics 365 Business Central with SharePoint

This "how-to-connect" documentation will explain the initial configuration of an example connection from Dynamics 365 Business Central to a SharePoint Online List in Office 365. We will be synchronizing data stored in Dynamics 365 Business Central.



This guide presupposes that you have installed the Layer2 Cloud Connector and that you are familiar with its basic functionality. The Layer2 Cloud Connector User Documentation will provide you with all necessary information.





Contents

1. Configuring Dynamics 365 Business Central

2. Configuring the Layer2 Cloud Connector

2.1 Creating a new connection

2.2 Configuring the Data Entity 1

2.3 Configuring the Data Entity 2

2.4 Running your connection

3. Hints and known issues

3.1 Connection direction

3.2 Data model

1. Configuring Dynamics 365 Business Central

We are going to need the user name, an access key and the company name to connect to Dynamics 365 Business Central. Go to your Dynamics 365 Business Central and click on the Search Symbol, search for Users and click on Users.



Business Central Users



Select a user you want to give access to and click on the three dots to edit this user.



Business Central User Edit



Copy the user name as written here. In the Web Service Access, generate a new Web Service Access Key clicking on the three dots and copy this value. Also copy the Company Name from the Office 365 Authentication as showed in the picture on the bottom right side.



Business Central User Access Key Company Name



2. Configuring the Layer2 Cloud Connector

2.1. Creating a new connection

Create a new connection by using the Create New Connection option in the Actions pane (right-hand side). The new connection will appear at the bottom of the Connection Manager List (left-hand side). Click on your newly created connection to open the connection configuration settings.



Choose a meaningful name for your connection and replace the current "New Connection" Connection Title with it.



Connections to Dynamics 365 Business Central can be bi-directional. An initial connection should always be uni-directional to assure that both data entities are identical before switching to bi-directional. Therefore, choose Left to Right as Direction. You can change this setting after your initial synchronization finished successfully.



Step 1 Dynamics 365 Business Central connection setup.png





2.2. Configuring the Data Entity 1

We will now set up our Data Entities. Go to the data entity “Data Entity 1” to open the configuration settings.



Choose a Data Entity Title. It is recommended to give your entities meaningful names to maintain an overview when you decide to set up multiple connections.



Select the Data Provider for Dynamics 365 Business Central from the data provider list. You can search for Dynamics 365 Business Central by typing into the selection box.

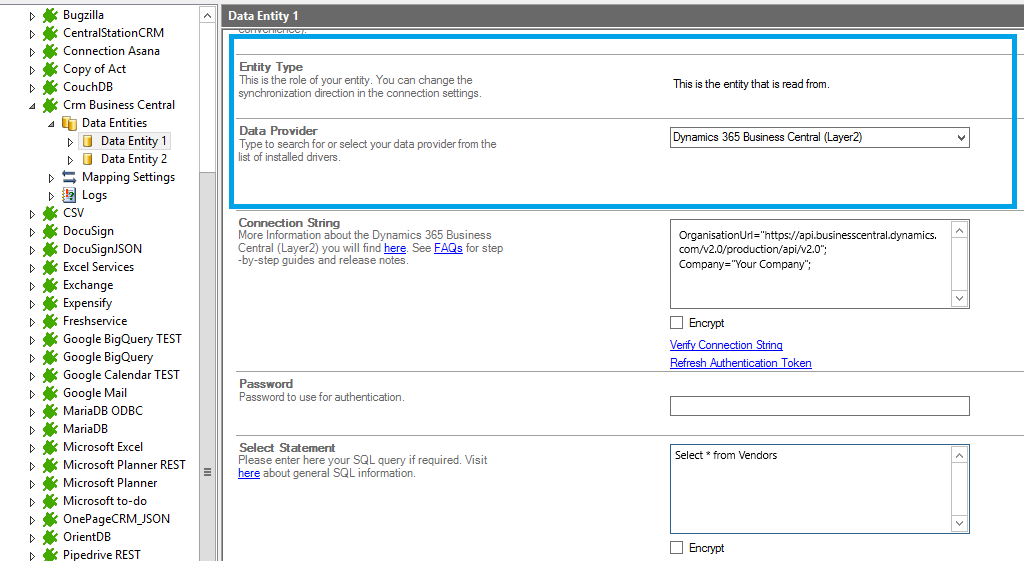

Step 2 Dynamics 365 Business Central integration source setup.png



For the Connection String, we need the information mentioned in step 1. You can copy the below connection string and adjust it to match your gathered information. Use the Verify Connection String option to evaluate if the provided connection string is valid.





User=CSANTOS;AccessKey=youraccesskey;Company="CRONUS DE";





  • "User=username;" this property defines the user account that will be used. It must match the username we found in step 1.
  • "AccessKey=youraccesskey;" this property must be set to the Web Service Access Key generated in the first step.
  • "Company=yourcompanyname;" this property must be set to the Company name from step 1.



The Select Statement text box is used to define specific data queries. We will be gathering all results from our table Power_BI_Item_Sales_List. You can copy the below select statement and adjust it to match your needs. Save your changes by using the right-hand pane option Save Changes.



SELECT * FROM Power_BI_Item_Sales_List

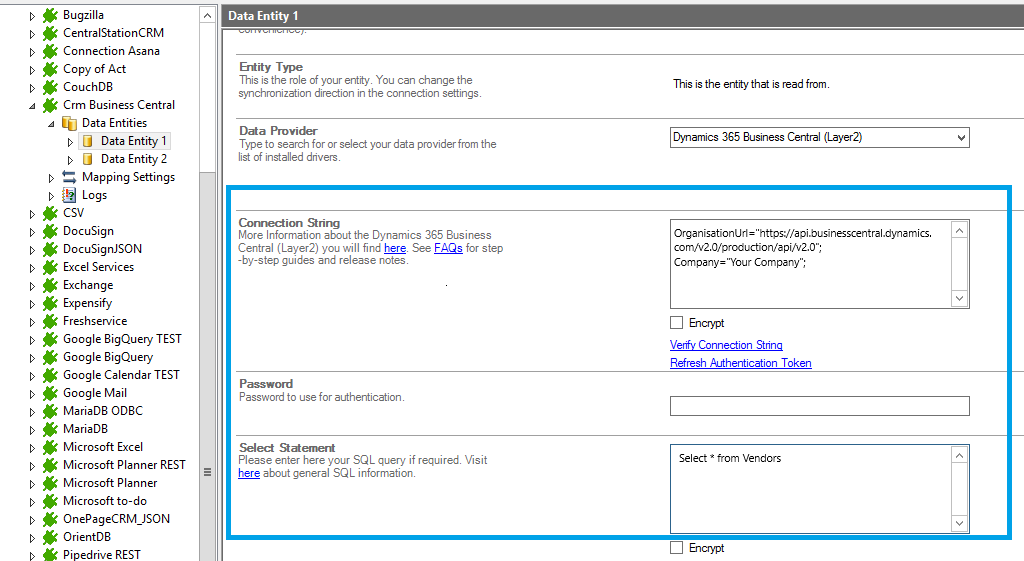

Step 2.5 Dynamics 365 Business Central integration connection string setup.png



To check if all necessary columns are received, you can use the Preview Data option on the right-hand pane which will provide you with a pop-up window showing your sample data from your Dynamics 365 Business Central entity.





Preview data of Dynamics 365 Business Central integration.png



2.3. Configuring the Data Entity 2

We are going to send the data to a custom SharePoint Online list. It's required that you set up this list prior to the next steps. Your list should contain matching columns according to your source entity.



Use the left-hand pane to switch to the data entity "Data Entity 2". We will be using the Layer2 SharePoint Provider for this setup.



For more information about the SharePoint provider visit:

https://www.layer2solutions.com/support/cloud-connector-faqs/layer2-csom-sharepoint-ado-net-provider.



You can copy the below Connection String which contains the minimum of required properties to connect to your custom SharePoint Online list.



URL=https://your_custom_sharepoint_list_url/AllItems.aspx;Authentication=Office365;User=User[email protected];



  • "URL=https://your_custom_sharepoint_url/AllItems.aspx;" this property defines the URL of your custom list that will be addressed.
  • "Authentication=Office365;" this property will determine the authentication method used. Office 365 is the default authentication method to access Microsoft Office 365 / SharePoint Online. This method will not work in case of federation, e.g. ADFS. For further authentication method, you can consult the provider specifications linked above.
  • "[email protected];" this property should describe the user you wish to connect to SharePoint to.



Enter the password that belongs to the user account used in the connection string into the Password field. Save your changes by using the right-hand pane option Save Changes.



Step 3 Dynamics 365 Business Central integration target setup.png



In the next step, we will configure our mapping settings. Click on the Mappings option on the left-hand pane. If your fields from SharePoint are named identical to the fields from your source system, the Enable Auto Mapping option will match those columns. Disabling this option allows you to match your columns as needed. We enabled auto-mapping in our setup. Save your changes by using the right-hand pane option Save Changes.



Step 4 Dynamics 365 Business Central integration mapping.png



2.4. Running your connection

To run your connection switch back to the main connection configuration node and use the Run Now Button located on the bottom of the setup page. The Run Synchronization Toolbox will also display the synchronization process.



Step 5 Dynamics 365 Business Central data integration start.png



Below is a data preview of the information we have accessed in our source entity:



Dynamics 365 Business Central integration ready.png



This will be the result in our SharePoint Online list after our initial successful synchronization:



Finished Dynamics 365 Business Central integration.png

If you want to use a bi-directional synchronization, you can now switch your connection direction after our first initial synchronization run finished successfully. See section 3.1 for further information.

3. Hints and known issues



3.1. Connection direction

As far as tested, this connection supports uni-directional as well as bi-directional synchronizations.



After adjusting the direction to bi-directional, you should check your Mappings settings again because some systems might include read-only columns that cannot be mapped directly.



We also recommend choosing a Conflict Resolution that matches your environment's needs. You can find out more about the different conflict resolutions in our Layer2 Cloud Connector User Documentation.

3.2. Data model

To see all the tables and views you can access with the Dynamics 365 Business Central provider, use this queries in the Select Statement:





SELECT * FROM sys_tablecolumns GROUP BY TableName





If there are more tables or views available, you can load them with the option "load more" in the popup window.
